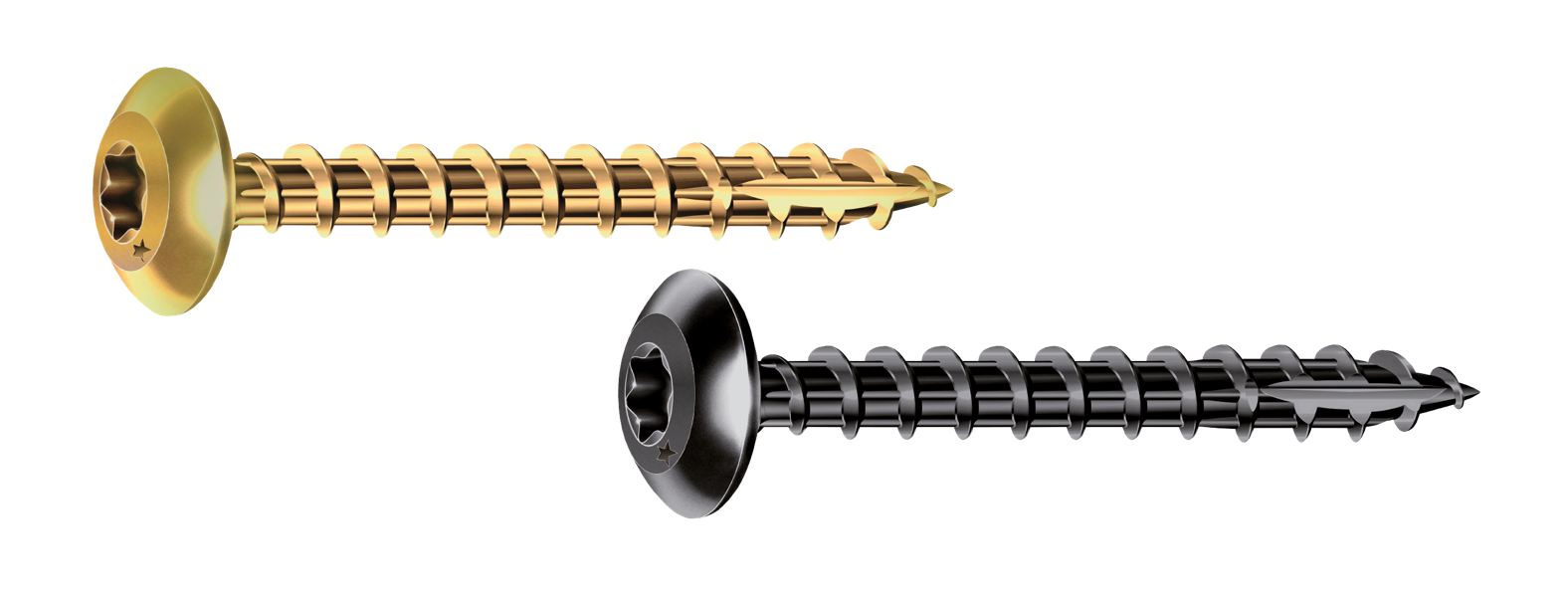

ROCKET screw Hinge

cylindrical head ⎪ star ⎪ bichromate steel or black-zinc-coated steel ⎪ mini-Vybac

Everything you’d expect from a ROCKET screw, only for hinges.

Delivers enhanced durability.

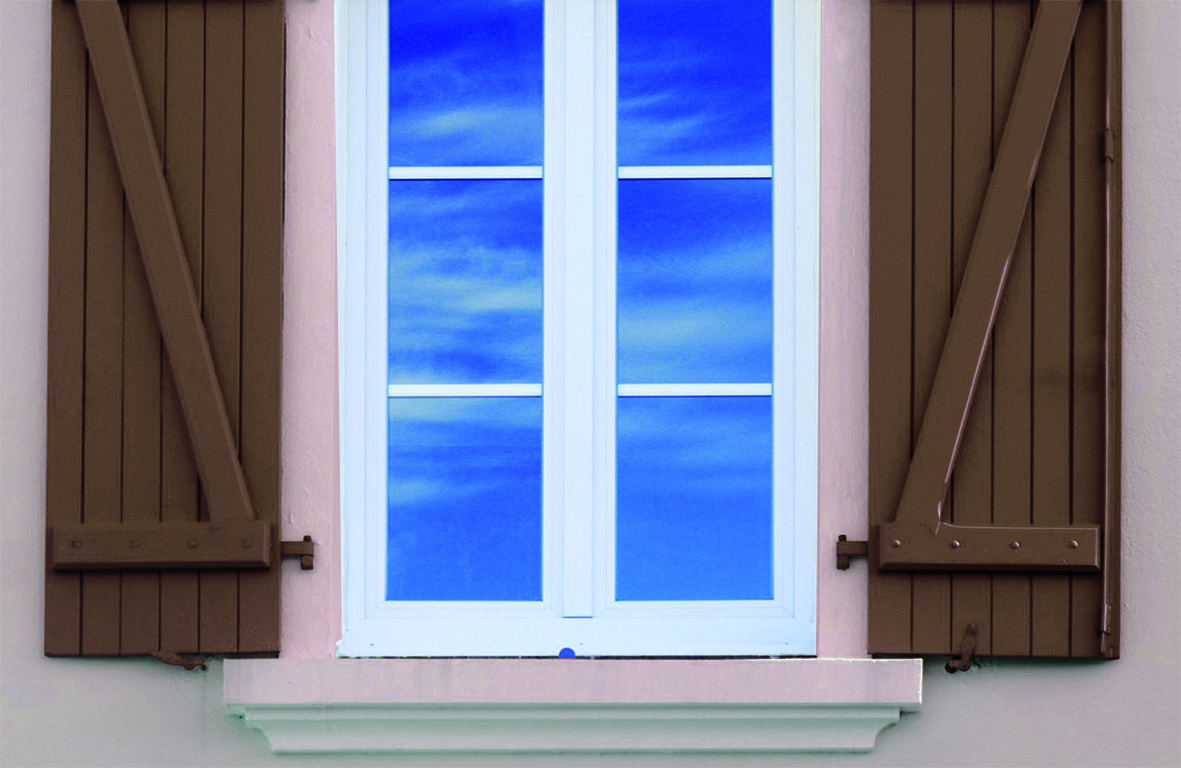

Non-split system ensures wood won’t split over time, particularly on shutters.

The thickness of the coating (black/bichromate) guarantees longevity for external use.

+ products
  • Wide cylindrical head
  • 6 grooves below the thread for enhanced breakaway torque
  • 40° thread angle = Enhanced pull-out resistance
  • Sharpened point to reduce splitting
  • 22 to 25° tapered point for precise screwing
FIND A STORE

Black-zinc-coated steel

Diameter Length Screw driver Nb de pcs par
unité conso 		GENCOD
6 30 TX30 8 310178 448370 0
6 40 TX30 8 310178 448371 7
6 50 TX30 8 310178 448372 4
7 40 TX30 8 310178 448373 1
7 50 TX30 6 310178 448374 8
7 60 TX30 6 310178 448379 3

Bichromate steel

Diameter Length Screw driver Nb de pcs par
unité conso 		GENCOD
6 30 TX30 8 310178 448380 9
6 40 TX30 8 310178 448381 6
6 50 TX30 8 310178 448382 3
7 40 TX30 8 310178 448383 0
7 50 TX30 6 310178 448384 7
7 60 TX30 6 310178 448385 4
